🏔 Plot model terrain#
[9]:
from herbie import Herbie
from herbie import paint
from herbie.toolbox import EasyMap, pc, ccrs
import matplotlib.pyplot as plt
HRRR Model Terrain#
[2]:
H = Herbie("2022-01-01", product="sfc")
ds = H.xarray("(?:HGT|LAND):surface")
ds
✅ Found ┊ model=hrrr ┊ product=sfc ┊ 2022-Jan-01 00:00 UTC F00 ┊ GRIB2 @ aws ┊ IDX @ aws
[2]:
<xarray.Dataset> Size: 46MB
Dimensions: (y: 1059, x: 1799)
Coordinates:
time datetime64[ns] 8B 2022-01-01
step timedelta64[ns] 8B 00:00:00
surface float64 8B 0.0
latitude (y, x) float64 15MB 21.14 21.15 21.15 ... 47.85 47.84
longitude (y, x) float64 15MB 237.3 237.3 237.3 ... 299.0 299.1
valid_time datetime64[ns] 8B 2022-01-01
gribfile_projection object 8B None
Dimensions without coordinates: y, x
Data variables:
lsm (y, x) float32 8MB 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0
orog (y, x) float32 8MB -0.01786 -0.01786 ... -0.01786
Attributes:
GRIB_edition: 2
GRIB_centre: kwbc
GRIB_centreDescription: US National Weather Service - NCEP
GRIB_subCentre: 0
Conventions: CF-1.7
institution: US National Weather Service - NCEP
model: hrrr
product: sfc
description: High-Resolution Rapid Refresh - CONUS
remote_grib: https://noaa-hrrr-bdp-pds.s3.amazonaws.com/hrrr....
local_grib: /home/blaylock/data/hrrr/20220101/subset_04ef438...
search: (?:HGT|LAND):surface[3]:
# We want to set the water points to nan
ds["orog"] = ds.orog.where(ds.lsm > 0)
[4]:
ax = EasyMap("50m", figsize=[15, 9], crs=ds.herbie.crs).STATES().ax
p = ax.pcolormesh(
ds.longitude,
ds.latitude,
ds.orog,
transform=pc,
cmap=paint.LandGreen.cmap,
)
plt.colorbar(
p,
ax=ax,
orientation="horizontal",
pad=0.01,
shrink=0.8,
label="Model Terrain Height (m)",
)
[4]:
<matplotlib.colorbar.Colorbar at 0x7f503b328b90>
Adjusting the colormap for different color effects.

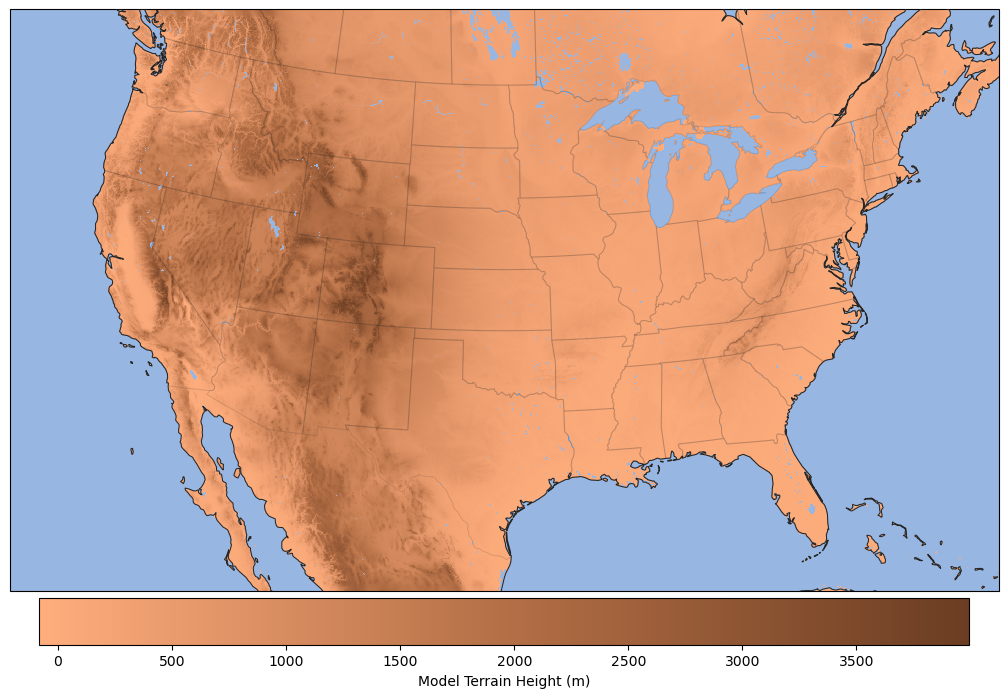

[5]:
ax = EasyMap("50m", figsize=[15, 9], crs=ds.herbie.crs).STATES().ax
p = ax.pcolormesh(
ds.longitude,
ds.latitude,
ds.orog,
transform=pc,
cmap=paint.LandBrown.cmap,
)
plt.colorbar(
p,
ax=ax,
orientation="horizontal",
pad=0.01,
shrink=0.8,
label="Model Terrain Height (m)",
)
[5]:
<matplotlib.colorbar.Colorbar at 0x7f5027d80560>

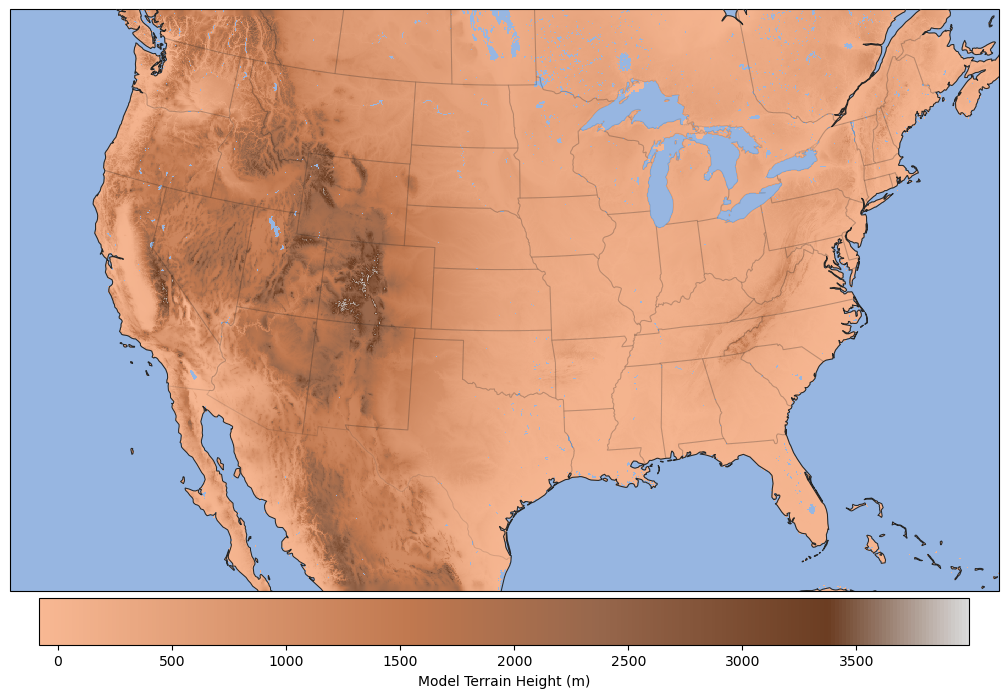

[6]:
ax = EasyMap("50m", figsize=[15, 9], crs=ds.herbie.crs).STATES().ax
p = ax.pcolormesh(
ds.longitude,
ds.latitude,
ds.orog,
transform=pc,
cmap=paint.LandTan.cmap,
)
plt.colorbar(
p,
ax=ax,
orientation="horizontal",
pad=0.01,
shrink=0.8,
label="Model Terrain Height (m)",
)
[6]:
<matplotlib.colorbar.Colorbar at 0x7f5027bf9700>
GFS Model Terrain#
Herbie actually has a little shortcut to return the terrain fields with the water points masked out. (Might not work for all models).
[7]:
H = Herbie("2022-01-01", model="gfs")
ds = H.terrain()
ds
✅ Found ┊ model=gfs ┊ product=pgrb2.0p25 ┊ 2022-Jan-01 00:00 UTC F00 ┊ GRIB2 @ aws ┊ IDX @ aws
[7]:
<xarray.Dataset> Size: 8MB
Dimensions: (latitude: 721, longitude: 1440)
Coordinates:
time datetime64[ns] 8B 2022-01-01
step timedelta64[ns] 8B 00:00:00
surface float64 8B 0.0
* latitude (latitude) float64 6kB 90.0 89.75 89.5 ... -89.75 -90.0
* longitude (longitude) float64 12kB 0.0 0.25 0.5 ... 359.5 359.8
valid_time datetime64[ns] 8B 2022-01-01
gribfile_projection object 8B None
Data variables:
lsm (latitude, longitude) float32 4MB 0.0 0.0 ... 1.0 1.0
orog (latitude, longitude) float32 4MB nan nan ... 2.775e+03
Attributes:
GRIB_edition: 2
GRIB_centre: kwbc
GRIB_centreDescription: US National Weather Service - NCEP
GRIB_subCentre: 0
Conventions: CF-1.7
institution: US National Weather Service - NCEP
model: gfs
product: pgrb2.0p25
description: Global Forecast System
remote_grib: https://noaa-gfs-bdp-pds.s3.amazonaws.com/gfs.20...
local_grib: /home/blaylock/data/gfs/20220101/subset_04ef4f92...
search: :(?:HGT|LAND):surfaceTODO: Notice the warning… I need to find a better approach for wrapped plots…

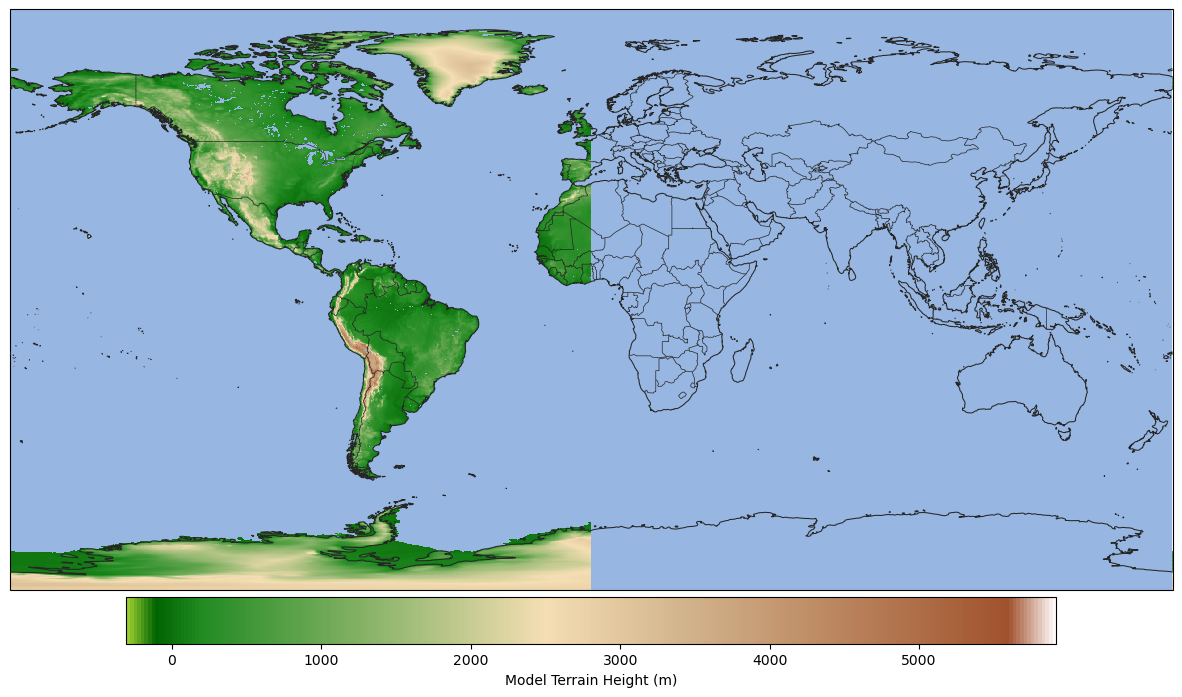

[8]:
ax = EasyMap("50m", figsize=[15, 9], crs=ds.herbie.crs).BORDERS().ax
p = ax.pcolormesh(
ds.longitude,
ds.latitude,
ds.orog,
transform=pc,
cmap=paint.LandGreen.cmap,
)
plt.colorbar(
p,
ax=ax,
orientation="horizontal",
pad=0.01,
shrink=0.8,
label="Model Terrain Height (m)",
)
/home/blaylock/miniconda3/envs/herbie-dev/lib/python3.12/site-packages/cartopy/mpl/geoaxes.py:315: UserWarning: The colormap's 'bad' has been set, but in order to wrap pcolormesh across the map it must be fully transparent.
return func(self, *args, **kwargs)
[8]:
<matplotlib.colorbar.Colorbar at 0x7f5027bf8110>

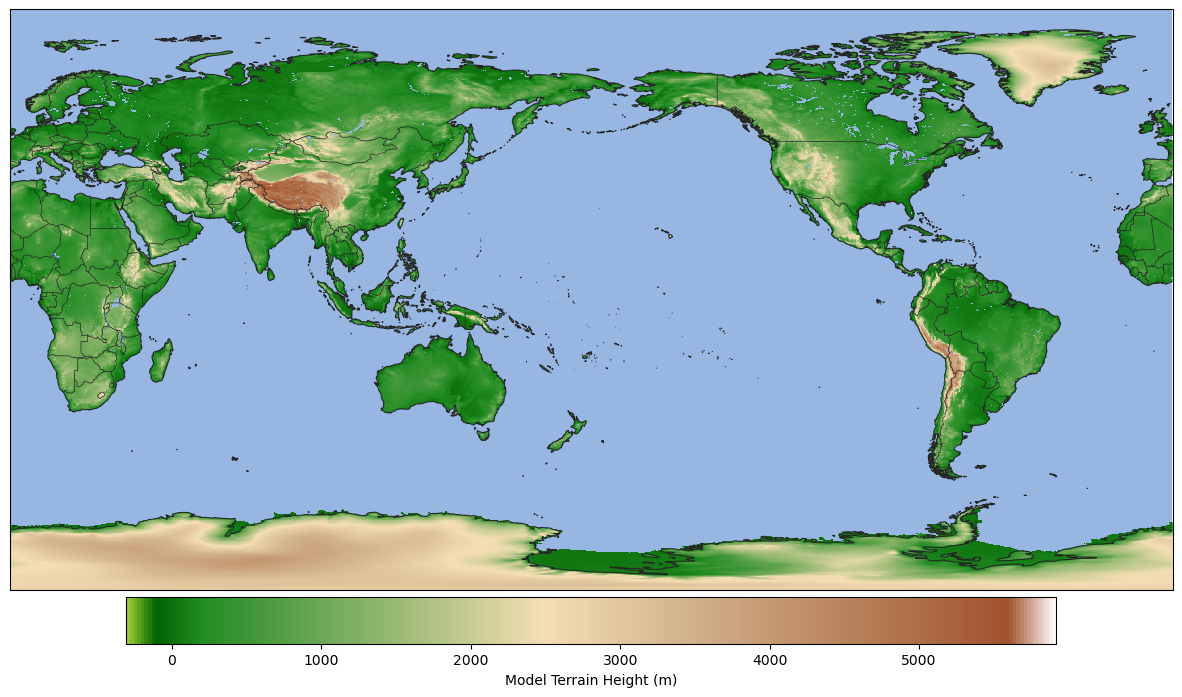

[11]:
ax = (
EasyMap("50m", figsize=[15, 9], crs=ccrs.PlateCarree(central_longitude=-180))
.BORDERS()
.ax
)
p = ax.pcolormesh(
ds.longitude,
ds.latitude,
ds.orog,
transform=pc,
cmap=paint.LandGreen.cmap,
)
plt.colorbar(
p,
ax=ax,
orientation="horizontal",
pad=0.01,
shrink=0.8,
label="Model Terrain Height (m)",
)
/home/blaylock/miniconda3/envs/herbie-dev/lib/python3.12/site-packages/cartopy/mpl/geoaxes.py:315: UserWarning: The colormap's 'bad' has been set, but in order to wrap pcolormesh across the map it must be fully transparent.
return func(self, *args, **kwargs)
[11]:
<matplotlib.colorbar.Colorbar at 0x7f501e0981a0>
