NAVGEM Data#

This demonstrates how to use data from the NAVGEM model from NOMADS.

Note: there are not .idx files provided, so you have to download the full file and generate the .idx file with wgrib2 (requires Linux).

[10]:

from herbie import Herbie
from toolbox import EasyMap, pc
from paint.standard2 import cm_tmp

import matplotlib.pyplot as plt
import cartopy.crs as ccrs

[11]:

H = Herbie("2022-12-10", model="navgem")

✅ Found ┊ model=navgem ┊ product=none ┊ 2022-Dec-10 00:00 UTC F00 ┊ GRIB2 @ local ┊ IDX @ None

[12]:

H.PRODUCTS

[12]:

{'none': ''}

[13]:

H.SOURCES

[13]:

{'nomads': 'https://nomads.ncep.noaa.gov/pub/data/nccf/com/fnmoc/prod/navgem.20221210/navgem_2022121000f000.grib2'}

[20]:

# no index file available. Have to download the full file.
H.download()

---------------------------------------------------------------------------
TypeError                                 Traceback (most recent call last)
Cell In[20], line 2
      1 # no index file available. Have to download the full file.
----> 2 H.download()

File ~\_GITHUB\Herbie\herbie\archive.py:911, in Herbie.download(self, searchString, source, save_dir, overwrite, verbose, errors)
    907     print(f"👨🏻‍🏭 Created directory: [{outFile.parent}]")
    909 if searchString in [None, ":"] or self.idx is None:
    910     # Download the full file from remote source
--> 911     urllib.request.urlretrieve(self.grib, outFile, _reporthook)
    913     self.grib = outFile
    914     # self.grib_source = "local"

File c:\Users\blaylock\Miniconda3\envs\herbie-dev\lib\urllib\request.py:239, in urlretrieve(url, filename, reporthook, data)
    223 def urlretrieve(url, filename=None, reporthook=None, data=None):
    224     """
    225     Retrieve a URL into a temporary location on disk.
    226
   (...)
    237     data file as well as the resulting HTTPMessage object.
    238     """
--> 239     url_type, path = _splittype(url)
    241     with contextlib.closing(urlopen(url, data)) as fp:
    242         headers = fp.info()

File c:\Users\blaylock\Miniconda3\envs\herbie-dev\lib\urllib\parse.py:1039, in _splittype(url)
   1036 if _typeprog is None:
   1037     _typeprog = re.compile('([^/:]+):(.*)', re.DOTALL)
-> 1039 match = _typeprog.match(url)
   1040 if match:
   1041     scheme, data = match.groups()

TypeError: expected string or bytes-like object

[15]:

import xarray

[16]:

# Since we have the full file, we need to filter by keys to open the
# variable we want with cfgrib
x = xarray.open_dataset(
    H.get_localFilePath(),
    engine="cfgrib",
    backend_kwargs={
        "filter_by_keys": {"shortName": "2t", "typeOfLevel": "heightAboveGround"}
    },
)

[17]:

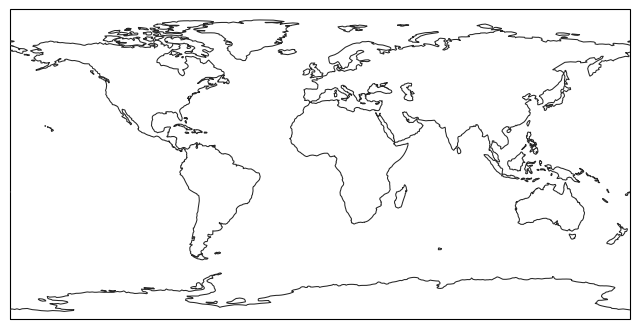

ax = EasyMap(crs=x.herbie.crs, figsize=[10, 8]).ax
p = ax.pcolormesh(
    x.longitude, x.latitude, x.t2m, transform=pc, **cm_tmp(units="K").cmap_kwargs
)
plt.colorbar(
    p, ax=ax, orientation="horizontal", pad=0.05, **cm_tmp(units="K").cbar_kwargs
)

ax.set_title(x.t2m.GRIB_name, loc="right")
ax.set_title(f"{H.model.upper()}: {H.product_description}", loc="left")

c:\Users\blaylock\Miniconda3\envs\herbie-dev\lib\site-packages\metpy\xarray.py:355: UserWarning: More than one time coordinate present for variable "t2m".
  warnings.warn('More than one ' + axis + ' coordinate present for variable'

---------------------------------------------------------------------------
AttributeError                            Traceback (most recent call last)
Cell In[17], line 2
      1 ax = EasyMap(crs=x.herbie.crs, figsize=[8, 8])
----> 2 p = ax.pcolormesh(
      3     x.longitude, x.latitude, x.t2m, transform=pc, **cm_tmp(units="K").cmap_kwargs
      4 )
      5 plt.colorbar(
      6     p, ax=ax, orientation="horizontal", pad=0.05, **cm_tmp(units="K").cbar_kwargs
      7 )
      9 ax.set_title(x.t2m.GRIB_name, loc="right")

AttributeError: 'common_features' object has no attribute 'pcolormesh'

../../_images/user_guide__model_notebooks_navgem_8_2.png

[ ]:
